SUB-BSR-D™ Dynamic Bend Stiffeners

Product Overview

SUB-BSR-D™ Dynamic Bend Stiffeners are an highly engineered product to provide a pre-defined stiffness to a cable or umbilical at its point of connection to a rigid structure or other system component. Its primary function is to limit design life bending stresses in the line at its most vulnerable point, thus removing the potential for damage at the line connection as a result of over bending. Our bend stiffeners can be engineered for use in both static and dynamic environments. Dynamic bend stiffeners designed for use in environments whereby the bending load is likely to alter throughout the products installation and are engineered to include significant anti-fatigue properties, thus removing any failure potential of the product throughout its lifespan.

Product Images

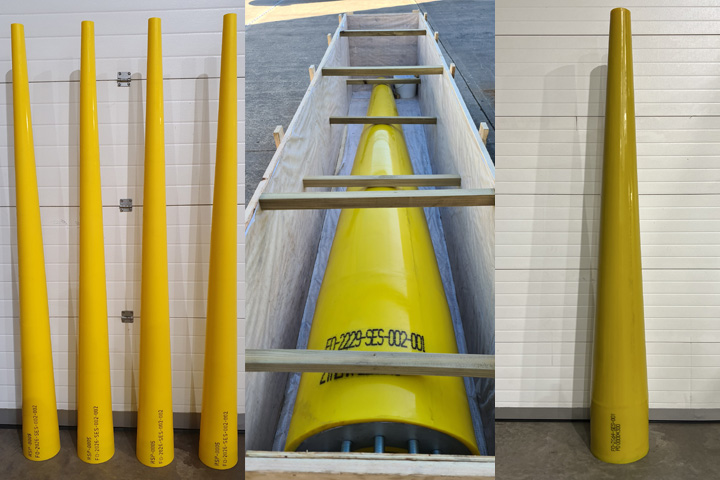

  • Bend Stiffeners
  • Bend Stiffeners
  • Bend Stiffeners
  • Bend Stiffeners
  • Bend Stiffeners
  • Bend Stiffeners
  • Bend Stiffeners
  • Bend Stiffeners
  • Bend Stiffeners
  • Bend Stiffeners
  • Bend Stiffeners
  • Bend Stiffeners
TECHNICAL SPECIFICATIONS
Description Specification
Design Forces To Suit Project
Design Life As Required
Cable Size (mm) 90 - 300
Material Subthane™ 803
Fasteners Carbon Steel, Stainless Steel, Super Suplex, Inconel, Titanium
Primary Colour Yellow
Features
  • Designed for dynamic / design life scenarios

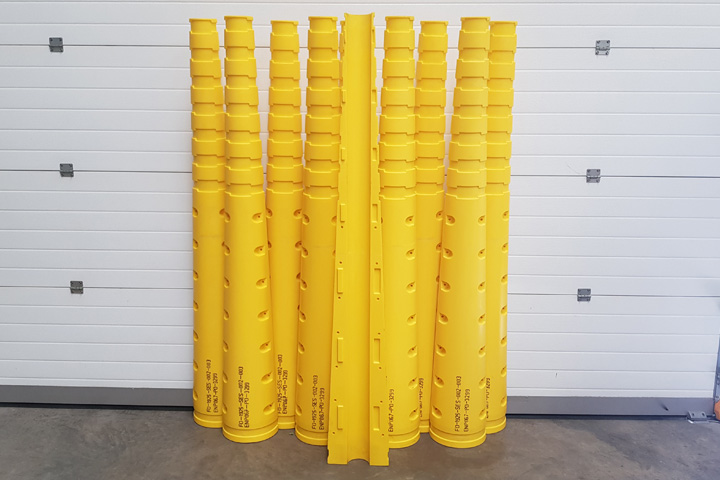

  • Available in a split shell design where required for ease of installation

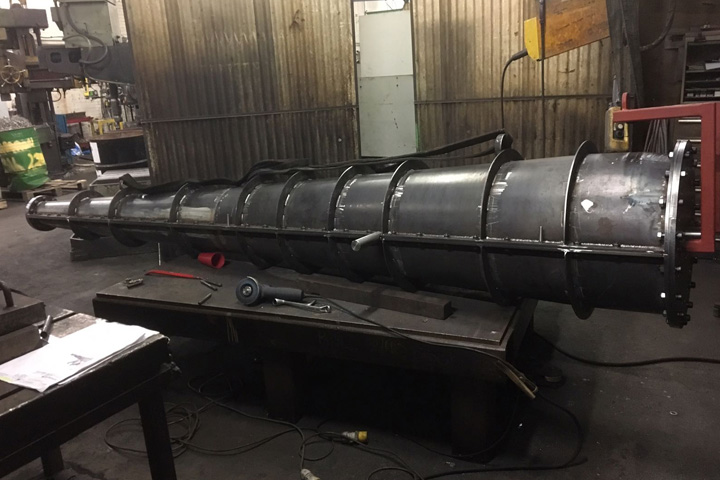

  • Incorporate integral steelwork necessary for interfacing with client's connecting structures where required
Clients & Track Record
Ref. Clients Specification
P-880 Scotrenewables / SR2000 / Orkney 2.1 m, SUB-BSR-DTM Dynamic Bend Stiffeners
P-1264 Korea Research Institute Of Ships & Ocean Engineering (KRISO) Jeju Island South Korea Pendulum Activated High Efficiency High Persistence 300 kW Floating Wave Energy Converter (WEC) 4.1 m, SUB-BSR-DTM Dynamic Bend Stiffeners

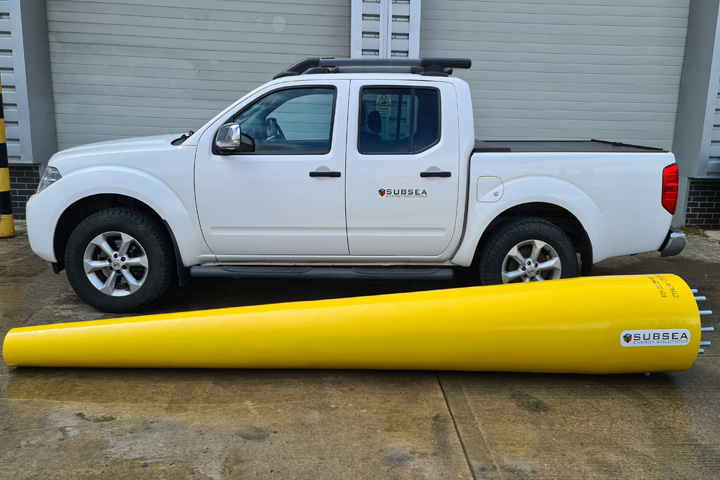

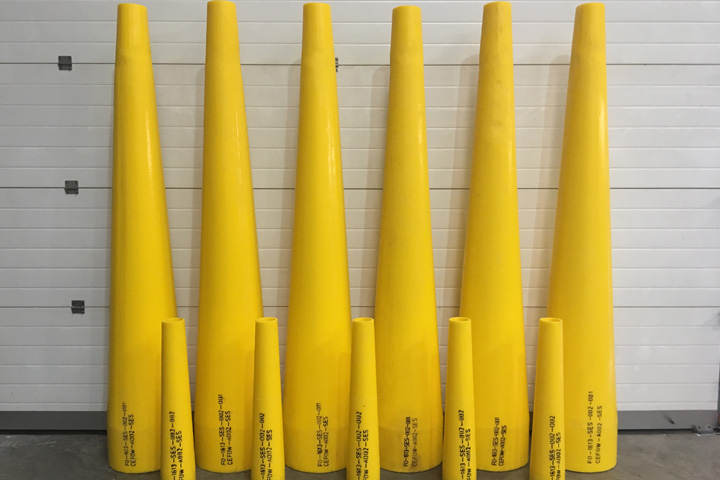

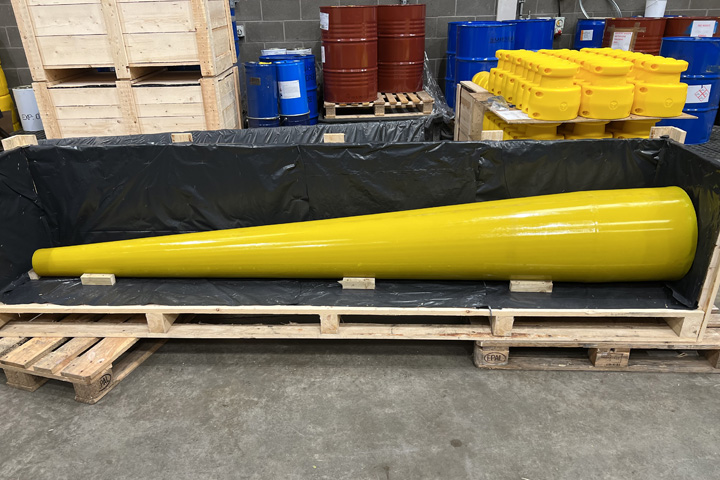

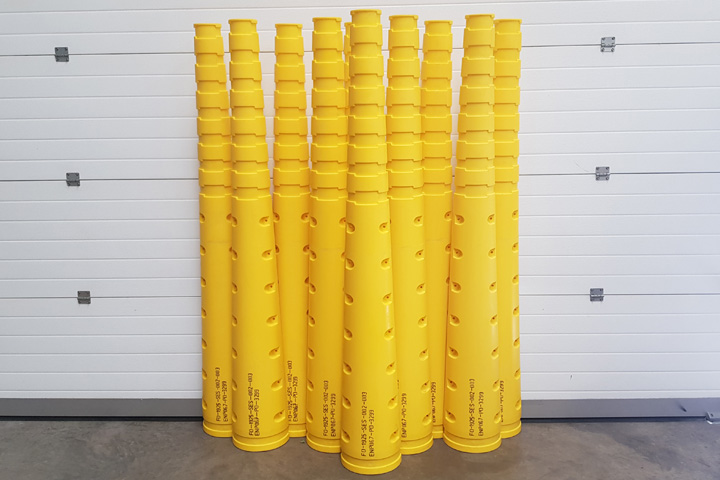

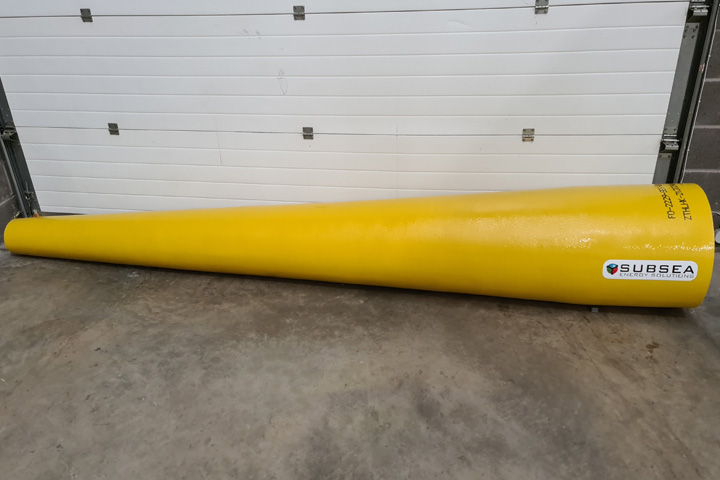

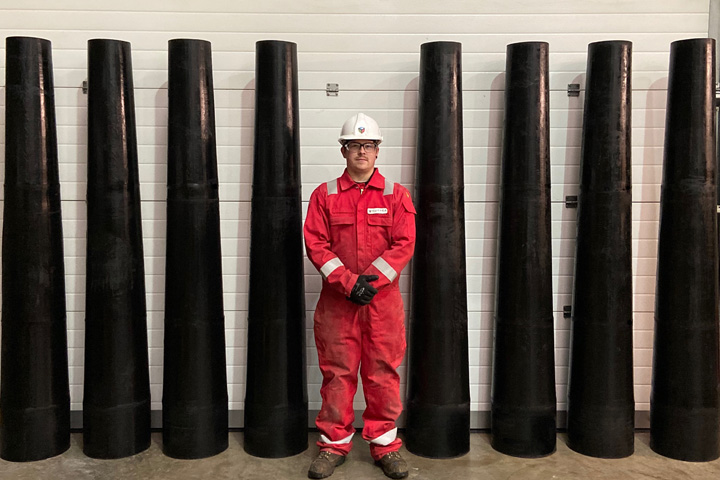

Dynamic Bend Stiffeners
Topside Bend Stiffeners
Offshore Bend Stiffeners
Bend Stiffeners Manufacturing
Dynamic Bend Stiffeners Moulding
Dynamic Bend Stiffeners Fabrication

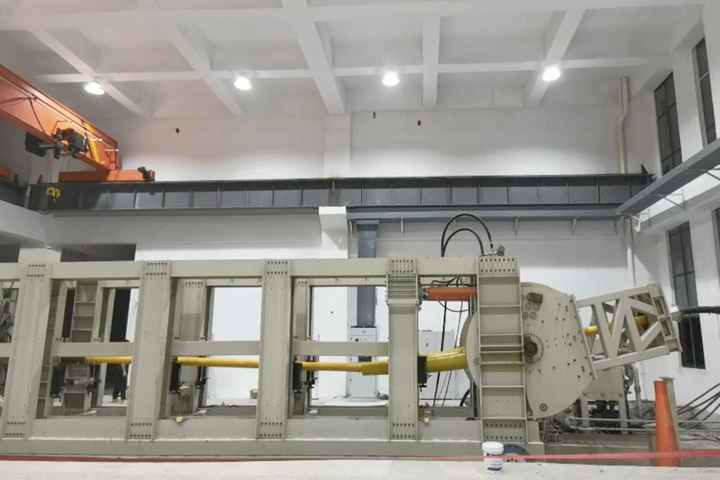

Dynamic Bend Stiffeners Testing
Dynamic Bend Stiffeners Design

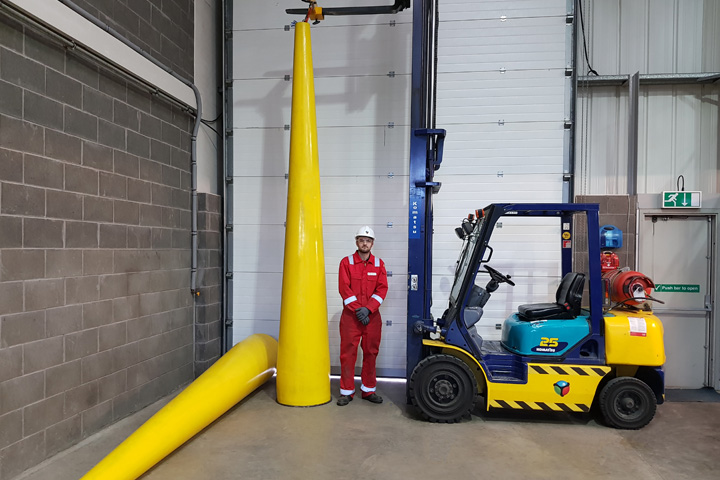

Large Dynamic Bend Stiffeners
