SUB-SRRJ™ Subsea Rigid Repair Joints

Product Overview

SUB-SRRJ™ Subsea Rigid Repair Joints are highly engineered specifically for offshore applications where time is critical. The Subsea Energy Solutions medium voltage (MV) power cable joint utilises an intuitive and unique system to seal the cable and connector against sea water. As a result the joint housing is not resin filled saving considerable assembly time and cost. The system used to seal the cable is quick and permanent. The Subsea Energy Solutions MV subsea power cable joint design has resulted from the accumulation of proven technology gained from many years experience designing and building subsea power cable joints. Working both in the field and in the design environment has provided essential knowledge necessary to produce a design which is cost effective, highly reliable and resilient. Subsea Energy Solutions specialises in the design, enhancement and provision of cable joints and connectors. As an independent company, free from any cable or plant manufacturer, Subsea Energy Solutions prime focus is on providing technology 100% fit for purpose and serviceable throughout the system life.

Product Images

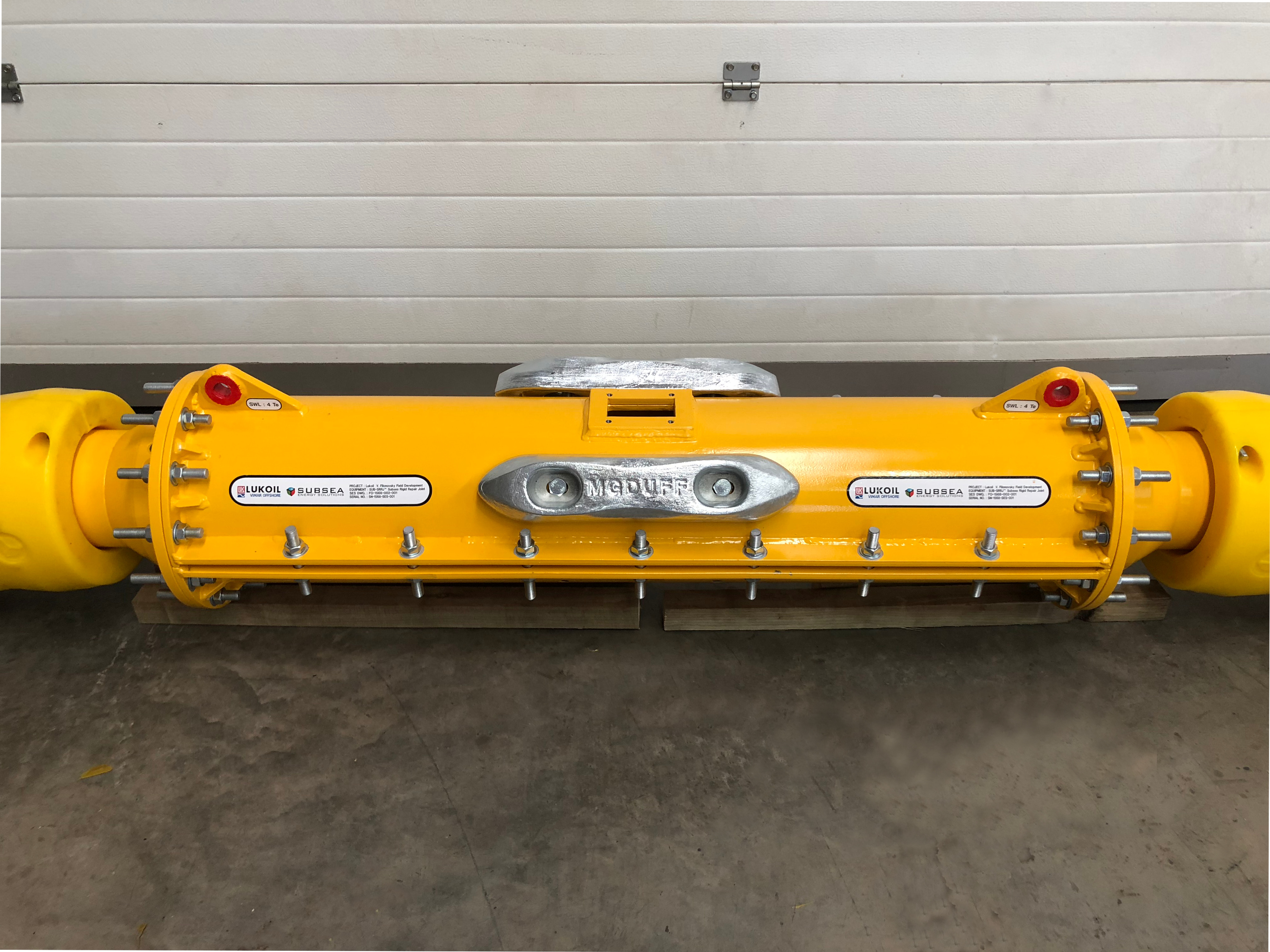

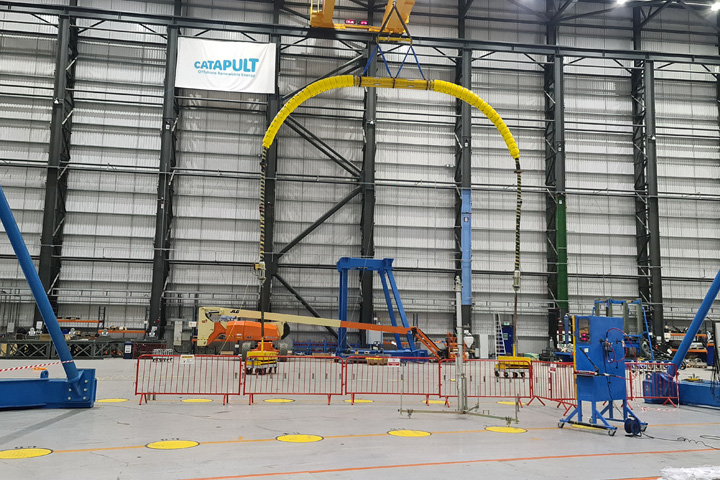

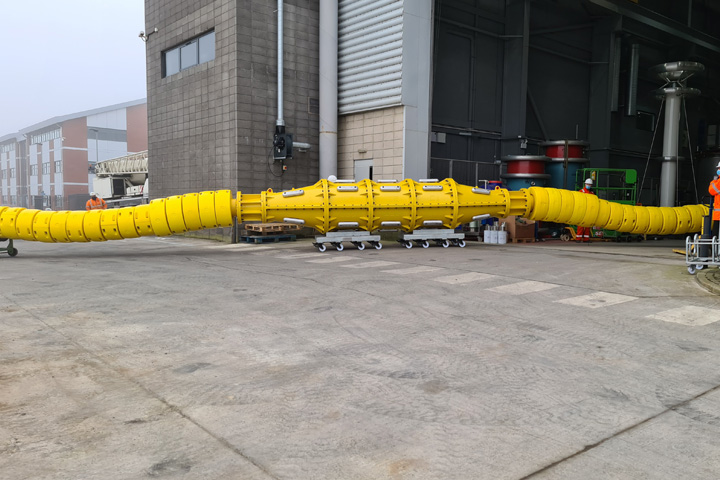

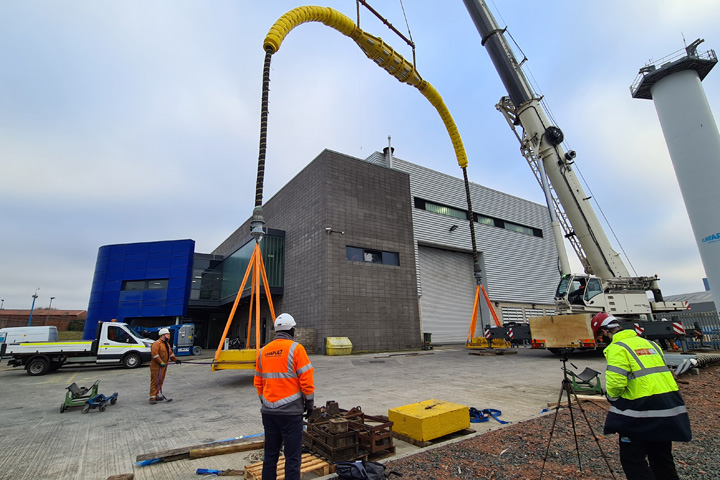

  • Rigid Repair Joints

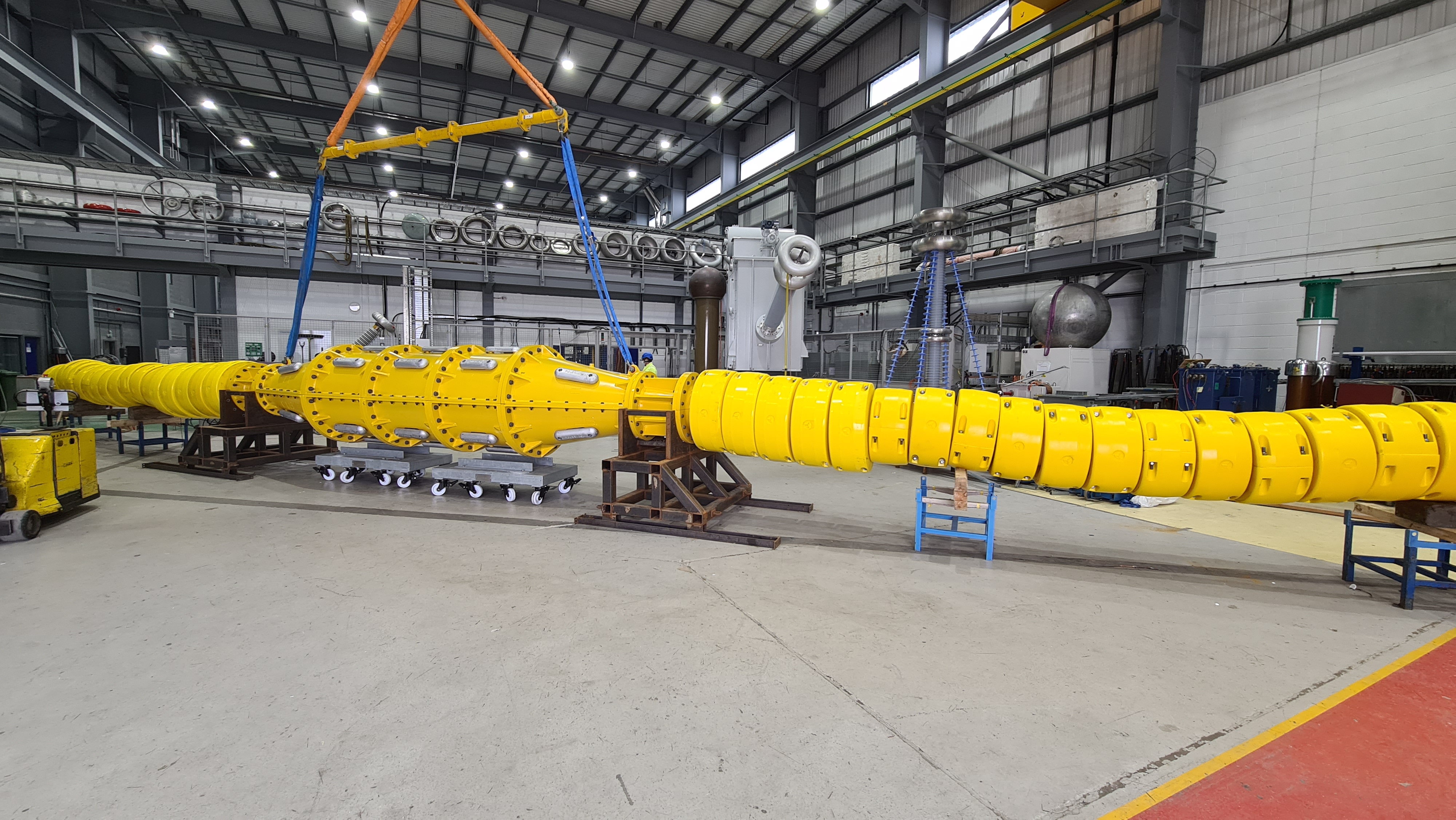

  • Rigid Repair Joints

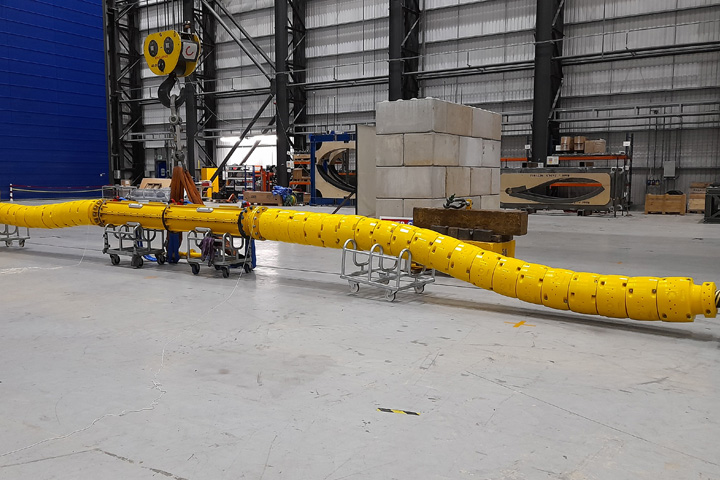

  • Rigid Repair Joints

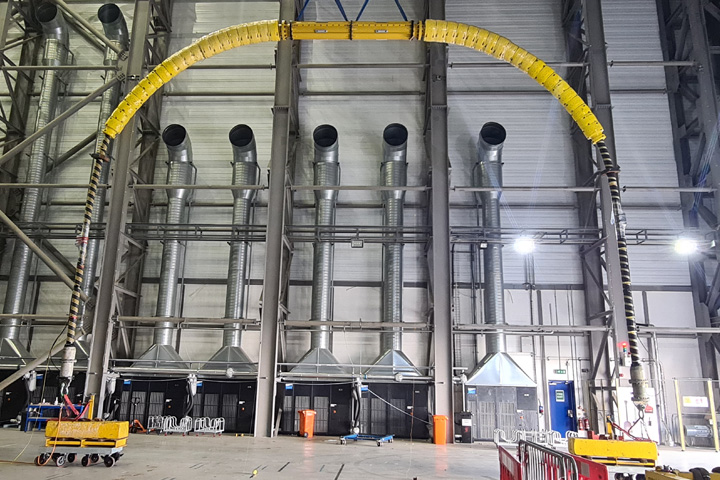

  • Rigid Repair Joints

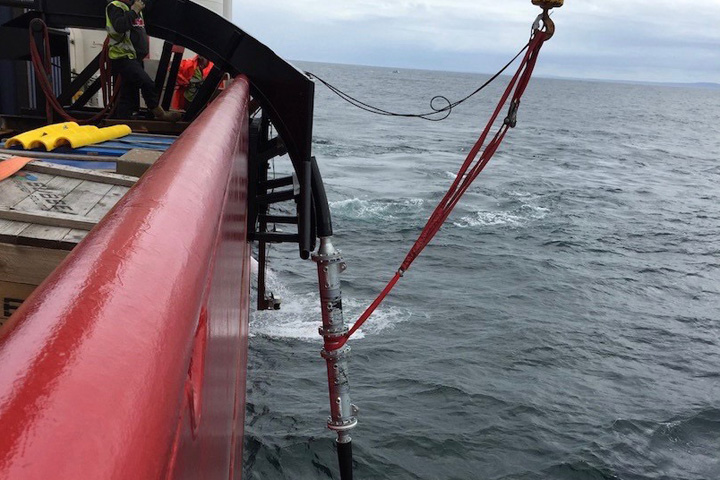

  • Rigid Repair Joints

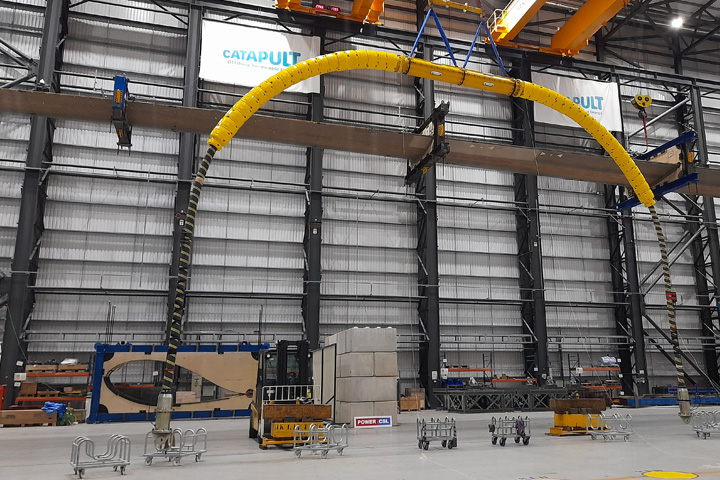

  • Rigid Repair Joints
TECHNICAL SPECIFICATIONS
Description Specification
Design Forces To Suit Project
Design Life As Required
Cable Size As Required
Material Carbon Steel (NORSOK)
Fasteners Carbon Steel, Stainless Steel, Super Suplex, Inconel, Titanium
Primary Colour Yellow
Features
  • Proven technology
  • Provided by independent company with enviable track record
  • Technology can be used to join differing cable joints “universal”
  • Cost effective
  • Reduced time to assemble
  • Eliminates the need to resin fill
  • Potential to assemble one end prior to main operation saving further operational time
  • Available for 7.2kV, 12kV and 36kV operating voltage
Clients & Track Record
Ref. Clients Specification
P-109 Vattenfall / K2 Managment Thanet Offshore Wind Farm Export Cable Repair SUB-SRRJ™ Subsea Rigid Repair Joint
P-734 Tidal Energy England Delta Stream Ramsey Sound Tidal Electro Hydraulic Umbilical SUB-SRRJ™ Subsea Rigid Repair Joint
P-1110 Wave Hub England Electro Hydraulic Umbilical SUB-SRRJ™ Subsea Rigid Repair Joint
P-1265 CNOOC / CCOOEC Subsea Technology Ningbo Orient Wires & Cables Co Wenchang 9-2/9-3/10-3 Gas Development Project SUB-SRRJ™ Subsea Rigid Repair Joint
P-1330 Lukoil / CNGS Group / 16V0900 V.Filanovsky Field Development Nexans Electro Hydraulic Umbilical SUB-SRRJ™ Subsea Rigid Repair Joint 16V0777 Y. Korchagin Field Development Hellenic Electro Hydraulic Umbilical SUB-SRRJ™ Subsea Rigid Repair Joint
