SUB-PIGGY™ Piggyback Clamps

Product Overview

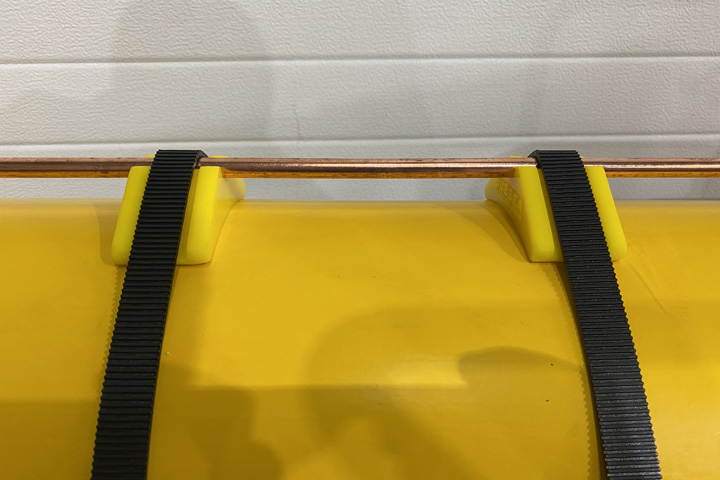

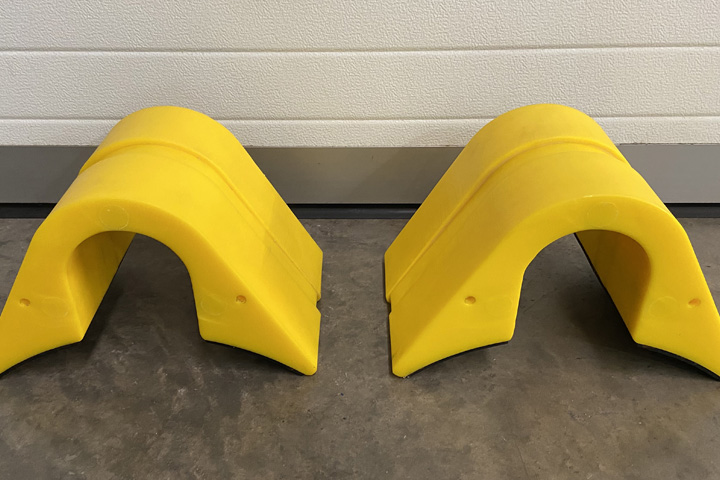

SUB-PIGGY™ Piggyback Clamps are often a requirement to host a smaller service line or cable simultaneous to a larger diameter pipeline. In order to ensure the secondary line is adequately supported and of the specified distance apart from the primary line, a series of clamps can be placed along the pipeline ensuring the desired arrangement. Our piggyback clamping systems comprise of either a moulded Polyurethane saddle held in place by circumferential straps, or a series of half shell clamps supported by internal strength members.

Product Images
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
  • Piggy Back Clamps
Technical Specifications
Description Specification
Design Life As Required
Material Subthane™ 801
Fasteners Carbon Steel, Stainless Steel, Super Suplex, Inconel, Titanium, Aramid, Nylon 66, Nylon 12, Nylon 11, PPS, PEEK
Primary Colour Yellow
Features
  • Modular construction
  • Ease of installation onshore and offshore
  • Neutrally buoyant in water, eliminating self weight loading on pipe
Clients & Track Record
Ref. Clients Specification
P-1475 Dulam International / Cortland Fibron BX / UAE 46” NS SUB-PIGGY™ Piggyback Clamps To Suit Umbilical
P-1459 DCN Diving / Sudan 35” SUB-PIGGY™ Piggyback Clamps (Umbilical & Fibre Optic)

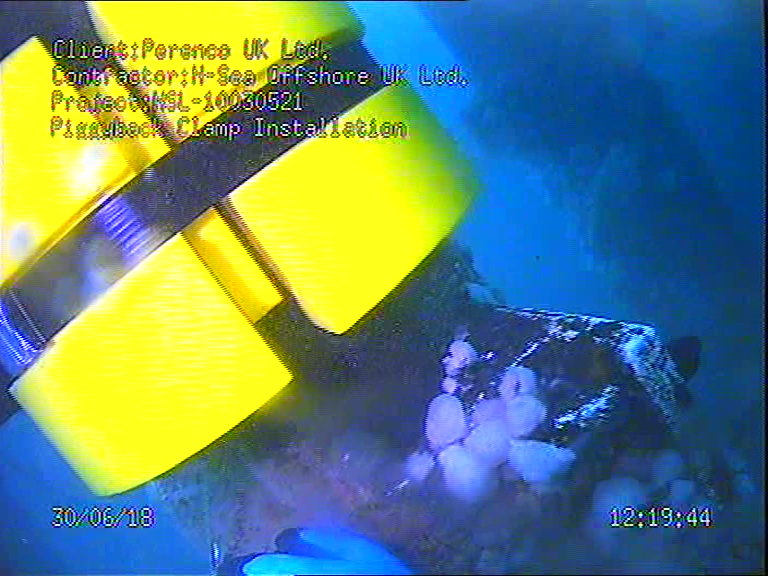

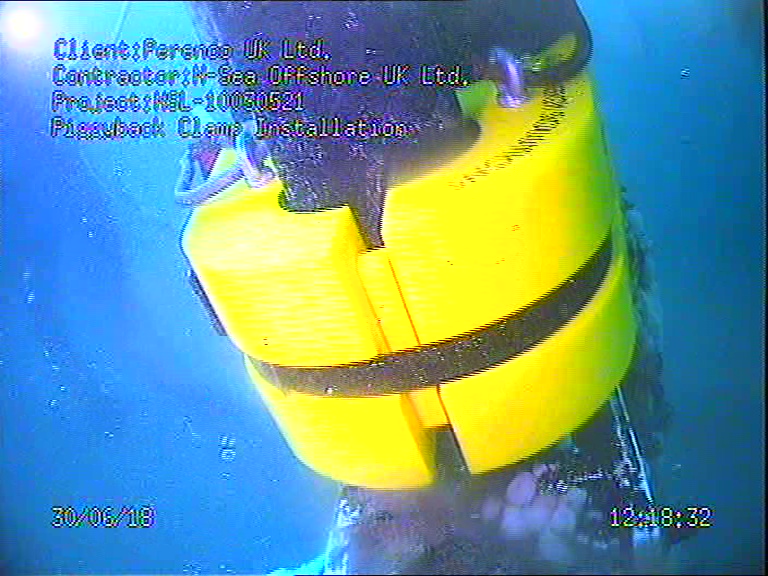

P-1550 Perenco / Inde 23 Alpha Platform / North Sea 17” NS SUB-PIGGY™ Piggyback Clamps To Suit MEG Riser

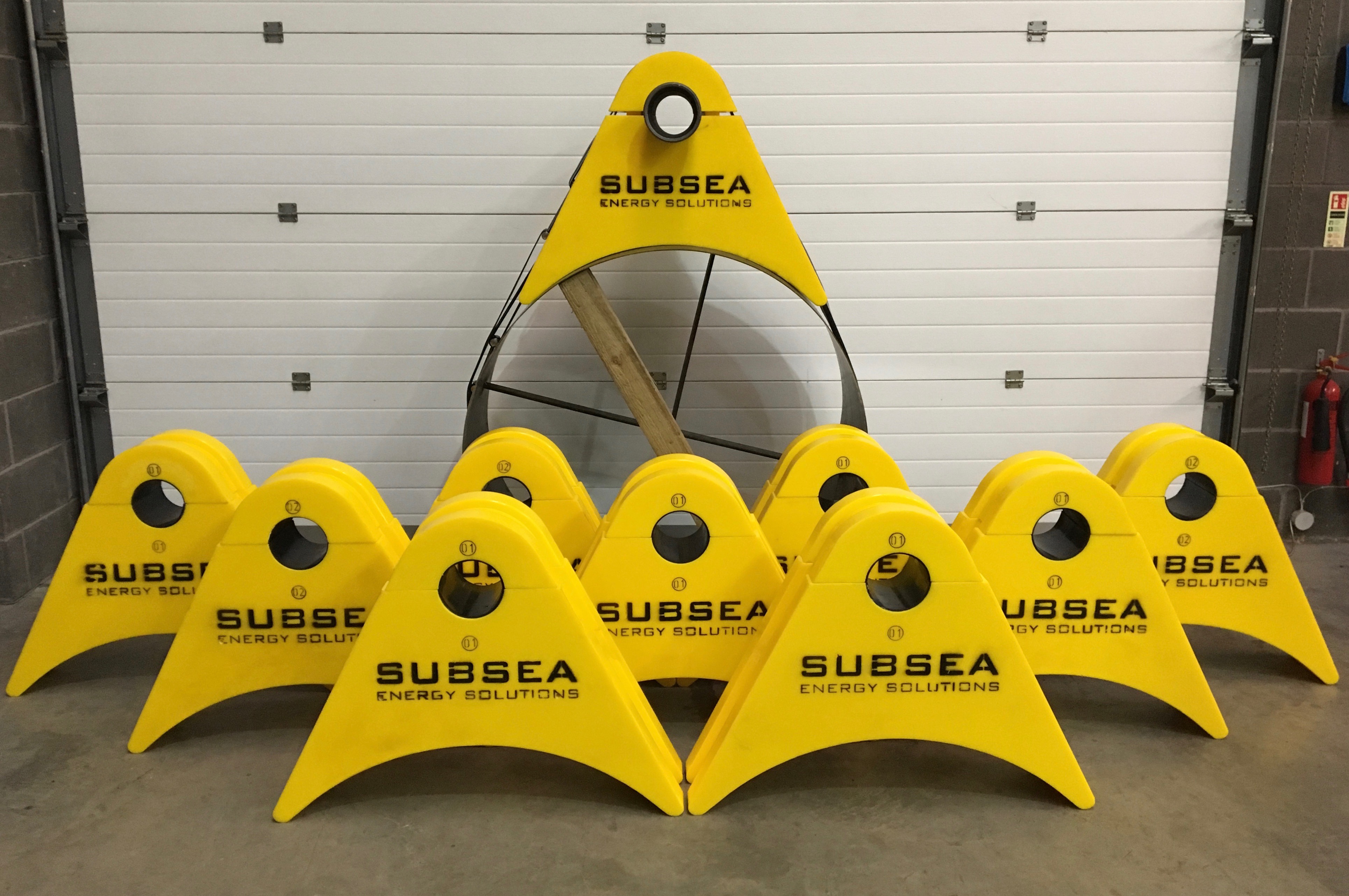

P-1661 BP France / Geocean Entrepose / VGAP / France White Product Offloading Terminal Aquarius 44” NS SUB-PIGGY™ Piggyback Clamps To Suit SUB-DUCT™ & Protector Shells
